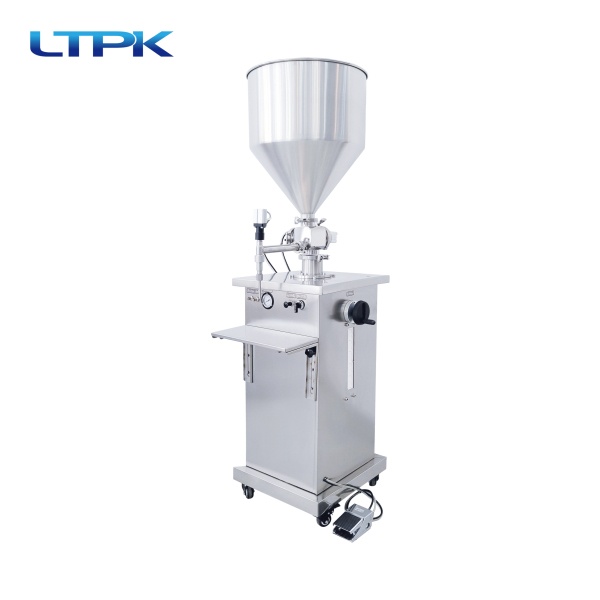

Vertical pneumatic rotary valve filling machine
- High precision filling with ±1.5% accuracy for consistent output.
- Adjustable throughput: 1–30 cycles/min for flexible production needs.
- Full pneumatic drive with 0.4Mpa air pressure, explosion-proof and safe for various environments.
- Low air consumption (≥0.1m³/min), energy-efficient and cost-saving.
- Compact size (600×600×1710mm) and light weight (65kg), easy to install and move.
- Versatile for food, cosmetics, and chemical industries with paste/liquid filling needs.
Performance and Features:
This vertical pneumatic rotary valve filling machine is designed for semi-automatic filling of liquids and pastes, ideal for small to medium production lines. It features a ±1.5% filling precision to ensure consistent product quality, with adjustable throughput from 1 to 30 times per minute to match your production speed.
Powered by pneumatic control (0.4Mpa air pressure required), the machine offers explosion-proof operation and reliable performance without electrical risks. Its low gas consumption (≥0.1m³/min) helps reduce energy costs, while the compact 600×600×1710mm design and 65kg weight make it easy to install, move, and integrate into existing workflows.
Suitable for industries including food processing, cosmetics, pharmaceuticals, and daily chemicals, this filling machine is compatible with various viscous materials such as sauces, creams, oils, and pastes. Built for durability and ease of maintenance, it provides a cost-effective solution for your filling needs.
Technical parameters:
| Model | Vertical pneumatic rotary valve filling machine |
| Filling Precision | ± 1.5% |
| Throughput | 1-30times/min |
| Gas consumption | ≥0.1m³/min |
| Equipped with air pressure | 0.4Mpa |
| Packaging size | 600x600x1710mm |
| Packaging weight | 65Kg |
