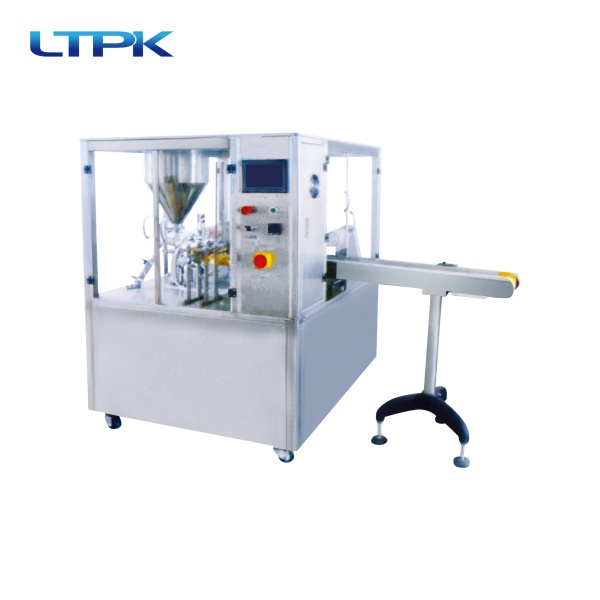

Rotating cup filling and sealing machine
- High-Speed Rotary Filling & Sealing：Packaging speed from 900 to 1680 pcs/h, ideal for medium-volume cup production lines
- Adjustable 0-250ml Filling Range：Suitable for filling liquids, pastes, semi-fluids like yogurt, jelly, sauce, and drinks in cups
- Reliable 380V Power System：0.75Kw motor power + 500W heating power, efficient and consistent operation with 50Hz frequency
- Stable Pneumatic Control：Works with 0.5-0.75MPa air pressure, max air consumption 0.45m³/min, low running cost
- Compact & Sturdy Build：1100×1100×1400mm size, 500kg weight, durable construction for long-term industrial use
Performance and Features:
Our rotary cup filling and sealing machine is a fully automatic, high-efficiency solution for cup packaging applications. With a rotary design, it delivers a stable packaging speed of 900 to 1680 pieces per hour, making it perfect for medium-scale production of cups containing liquids, semi-fluids, pastes, yogurt, jelly, sauces, and beverages.
Featuring an adjustable filling range of 0-250ml, this machine adapts to various cup sizes and product types. It operates on a 380V/50Hz power supply, with 0.75Kw motor power and 500W heating power for reliable sealing performance. The pneumatic system runs at 0.5-0.75MPa with a low maximum air consumption of 0.45m³/min, ensuring energy efficiency and low operational costs.
With a compact footprint of 1100×1100×1400mm and a robust 500kg build, this filling and sealing machine is built for durability and consistent performance in food, beverage, and cosmetic industries.
Technical parameters:
| Model | Rotating cup filling and sealing machine |
| Packaging speed | 900-1680pcs/h |
| Filling content | 0-250ml |
| Voltage | 380V/50Hz |
| Electric motor power | 0.75Kw |
| Heat up power | 500w |
| Air pressure | 0.5-0.75Mpa |
| Maximum air consumption | 0.45m³/min |
| Size(LxWxH) | 1100x1100x1400mm |
| Weight | 500Kg |
