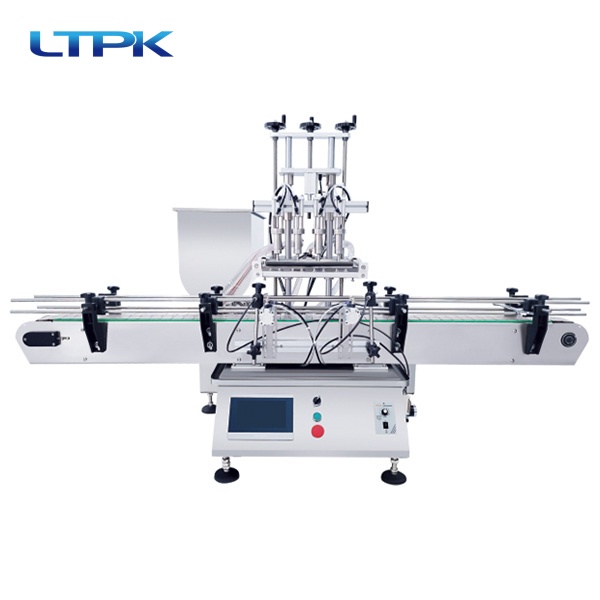

Automatic desktop paste filling machine (four heads)
- Flexible Customization: Filling heads optional from 2/4/6/8/10 heads to match different production capacity needs; multiple interchangeable filling ranges from 5ml to 5000ml for various paste products.
- Precise Filling Control: ±1% filling accuracy ensures consistent dosing, avoids raw material waste for cream, honey, chili sauce, cosmetic paste and ointment.
- Wide Voltage Compatibility: Supports AC110V/220V 50/60Hz, fits global factory power standards; 0.4-0.6Mpa pneumatic drive delivers stable running performance.
- Adjustable Production Speed: Running speed variable 5~60 bottles per minute, easy to tune for small batch trial production & medium-scale mass filling.
- Compact Desktop Layout: 180kg lightweight body with 1450×1400×1350mm packing dimension, space-saving for lab, cosmetic workshop and small food processing plants.
Performance and Features:
Our automatic desktop four-head paste filling machine is a pneumatic-driven dosing filler specially designed for semi-viscous & thick paste materials including cosmetic cream, body lotion, fruit jam, chili paste, pharmaceutical ointment and honey.
Equipped with customizable filling heads ranging from 2 to 10 pieces and six optional filling specifications covering 5ml~5000ml, this desktop filler meets diversified filling demands from small sample testing to regular bulk production. It achieves ±1% outstanding filling precision to guarantee uniform product weight and reduce production loss.
Working speed is adjustable between 5-60 bottles per minute, driven under standard 0.4-0.6Mpa air pressure; dual 110V/220V 50/60HZ power supply makes the machine available for worldwide clients. Featuring compact desktop structure with 180kg net weight and small overall footprint, it is an ideal filling equipment for startup factories, cosmetic labs and small food manufacturers with limited workshop space.
Technical parameters:
| Model | Automatic desktop paste filling machine (four heads) |
| Power | 500W |
| Power Supply | AC220/110V 50/60HZ |
| Pressure | 0.4-0.6Mpa |
| Speed | 5-60blts/min |
| Accuracy | ±1% |
| Filling range | 5-100ml / 10-300ml / 50-500ml / 100-1000mI / 500-3000ml / 1000-5000ml |
| Number of filling heads | 2 / 4 / 6 / 8 / 10 customize able |
| Packaging size | 1450x1400x1350mm |
| Machine weight | 180kg |
