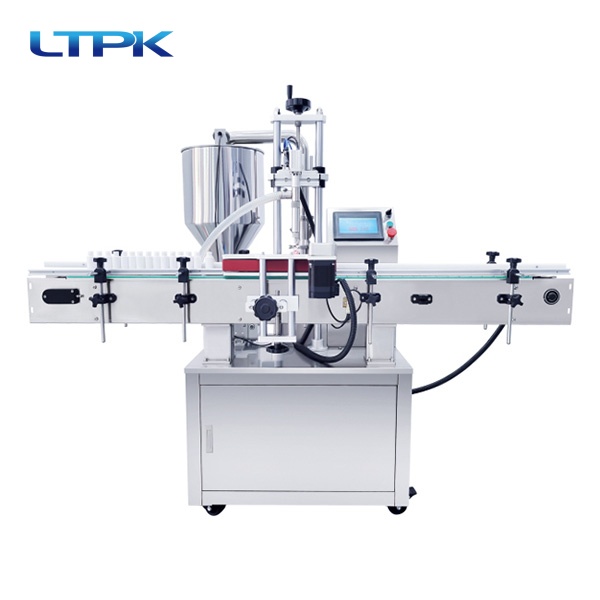

23 PRO - Fully automatic linear (feeding) servo rotor pump filling machine
- Wide Filling Range & Versatility: Handles 5-5000ml volumes, ideal for pastes, liquids, and thick materials across industries like food, cosmetics, and pharmaceuticals.
- Servo-Powered Precision: Servo motor-driven rotor pump ensures ±1% filling accuracy, reducing material waste and ensuring uniform product quality.
- Flexible Configuration: 1 or 2 filling heads, adjustable speed (20-60 bottles/min), and compatibility with 25-101mm bottles adapt to diverse production needs.
- Global Voltage Compatibility: 110V/220V 50/60Hz optional, suitable for worldwide installation and use.
- Compact & Efficient Design: Optimized footprint (1870×1499×927mm) maximizes factory space without compromising throughput or performance.
Performance and Features:
The 23 PRO fully automatic linear servo rotor pump filling machine is engineered for precision and versatility in filling pastes, liquids, and thick materials. With a filling volume range of 5-5000ml, it adapts to diverse production needs, supported by 1 or 2 filling heads to balance speed and efficiency. Powered by a servo motor system, it delivers ±1% filling precision, ensuring consistent product quality every time.
Designed for global compatibility, the machine features multi-voltage optional (110V/220V, 50/60Hz) and accommodates bottle diameters from 25-101mm. With a throughput of 20-60 bottles per minute, it meets the demands of small to medium-scale production lines. Its compact packaging size (1870×1499×927mm) optimizes factory space while maintaining robust performance.
Technical parameters:
| Model | 23 PRO fully automatic linear (feeding) servorotor pump filling machine |
| Filling volume | 5-5000ml |
| Filling type | Servo motor |
| Material type | Pastes,liquids,thickmaterials |
| Number of filling heads | 1 or 2 head |
| Power | 1.5KW110V/220V,50/60Hz |
| Applicable bottle diameter | 25-101mm |
| Throughput | 20-60Bottle/min |
| Filling Precision | ≤±1% |
| Packaging size | 1870x1499x927mm |
