KXJ-801 Unpacking machine
This high-speed unpacking machine features mechanical transmission with branded mechanical, electrical and pneumatic components for reliable performance. Equipped with automatic pre-warning for carton replenishment, it allows non-stop refilling to save time. It achieves non-stop bottom folding and sealing during transportation, completing box suction, molding and bottom folding in just 3 seconds. The full back cover process is high-speed, stable, easy to operate and cost-effective. Controlled by PLC + human-machine interface, the machine boasts simple operation and maintenance with consistent, stable running.
Performance and Features:
1、High-speed unpacking machine adopts mechanical transmission, and uses brand parts, electrical components and pneumatic components.
2、Automatic pre-warning reminds the replenishment of carton, no need to stop the replenishment of carton, saving more time.
3、The bottom folding does not stop, the bottom folding and sealing are completed during the transportation, and the suction box, molding and bottom folding are completed in 3 seconds.
4、The whole process of back cover is high-speed, stable, convenient and economical.
5、The machine is controlled by PLC + human-machine interface, which is easy to operate, simple to maintain, and stable in performance.
Technical parameters:
| Model | KXJ-801 |
| Sealing speed | 500-600 boxes/hour |
| Sealing length | L200-500mm |
| Sealing width | W200-400mm |
| Sealing height | H200-500mm |
| Applicable tape | 18-60-75Wmmx1000ml |
| Table height | 620mm |
| Voltage | 220V 50Hz/60Hz/1Ph 380V 50Hz/60Hz/3Ph |
| Working air pressure | 6kg/cm² 100ml/min |
| Noise level | 80dBA |
| Power consumption | 0.2kw |
| Dimensions | L2070xW2000xH1100mm |
| Weight | about 405kg |

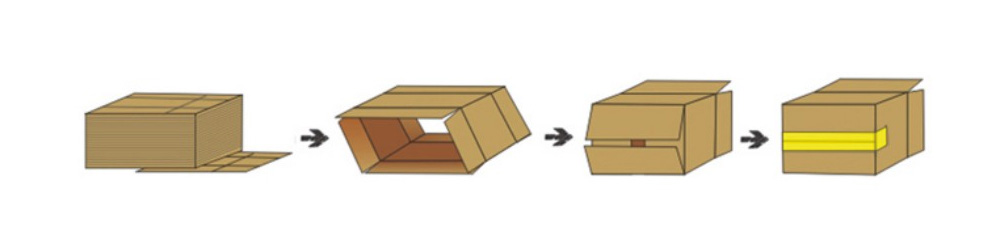

schematic diagram:
