ZE-8B/4 paper folding machine
ZE-8B/4
- Four Folding Trays：4 folding trays to realize complex multi-fold brochure styles
- Super Large Paper Capacity：Max paper size 310×700mm, process oversized printing materials
- Full Paper Thickness Coverage：Stable folding for 40g thin offset paper to 125g coated art paper
- Heavy Reinforced Structure：48kg solid frame, stable under long-hour uninterrupted operation

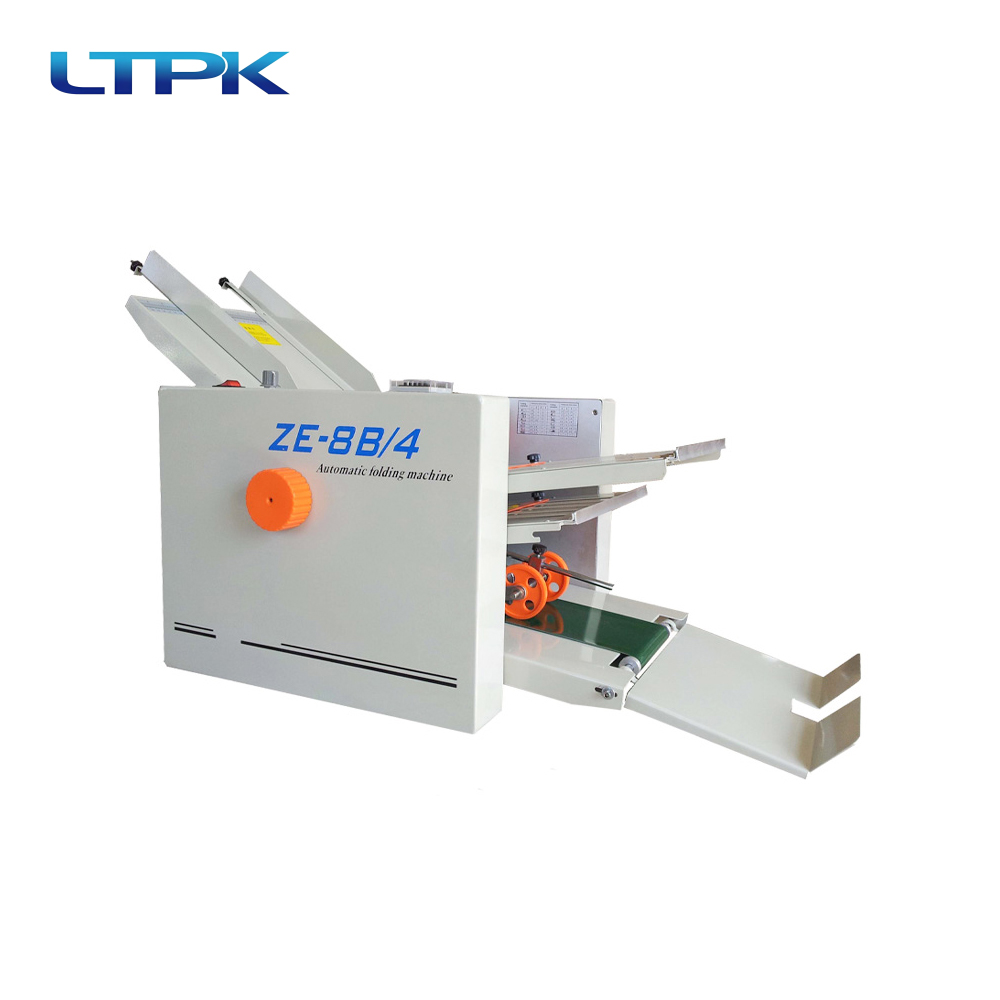

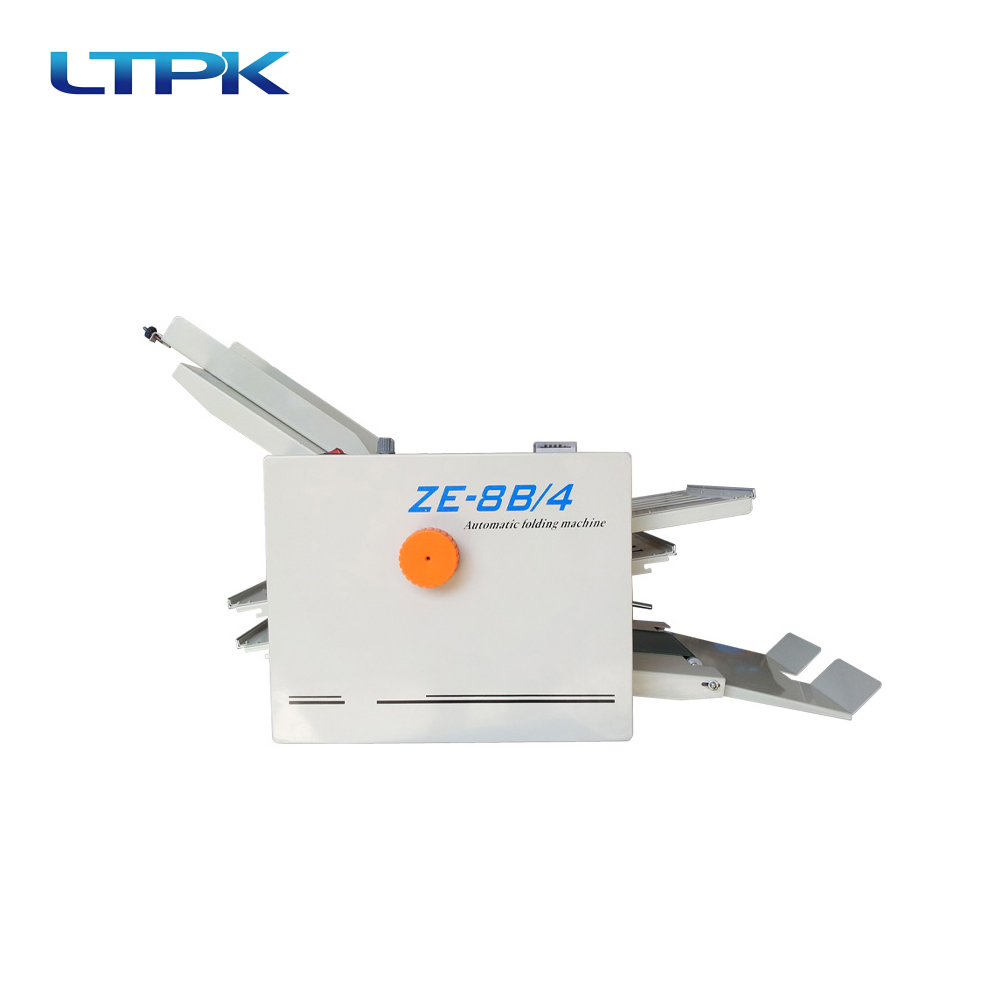

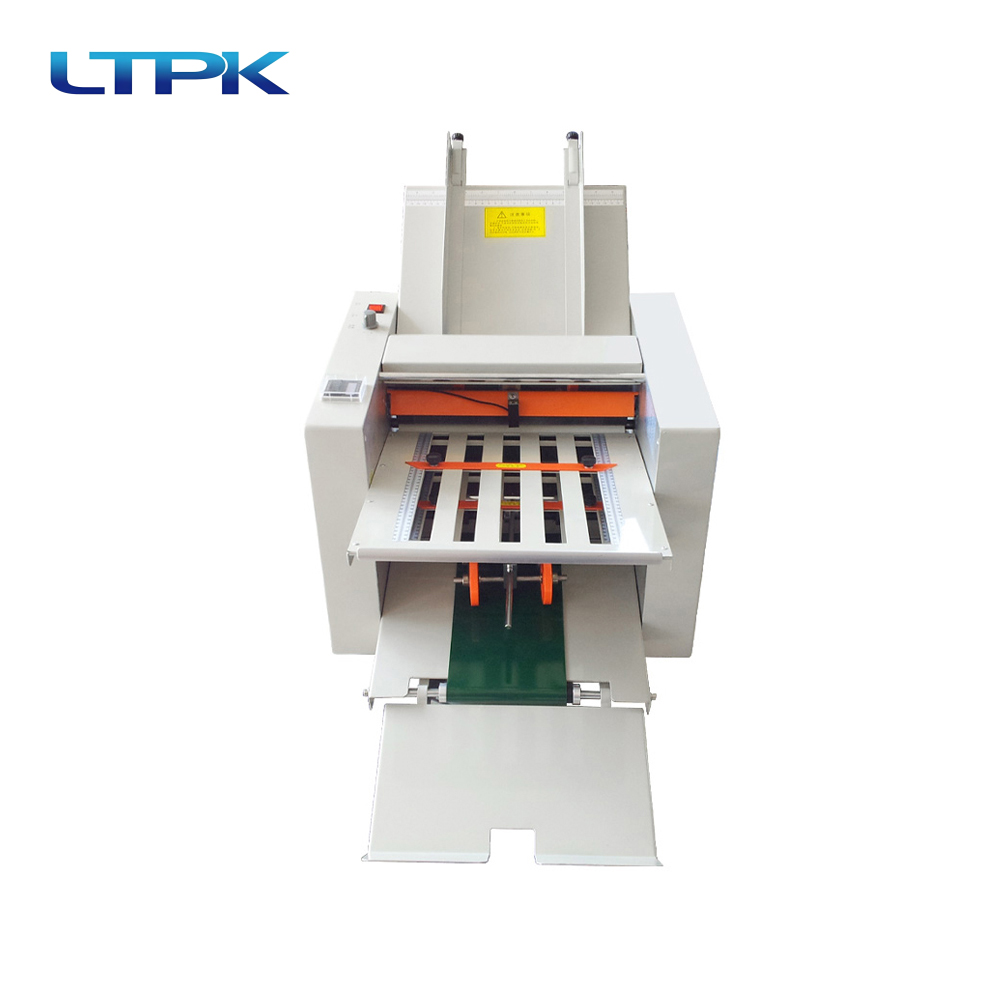

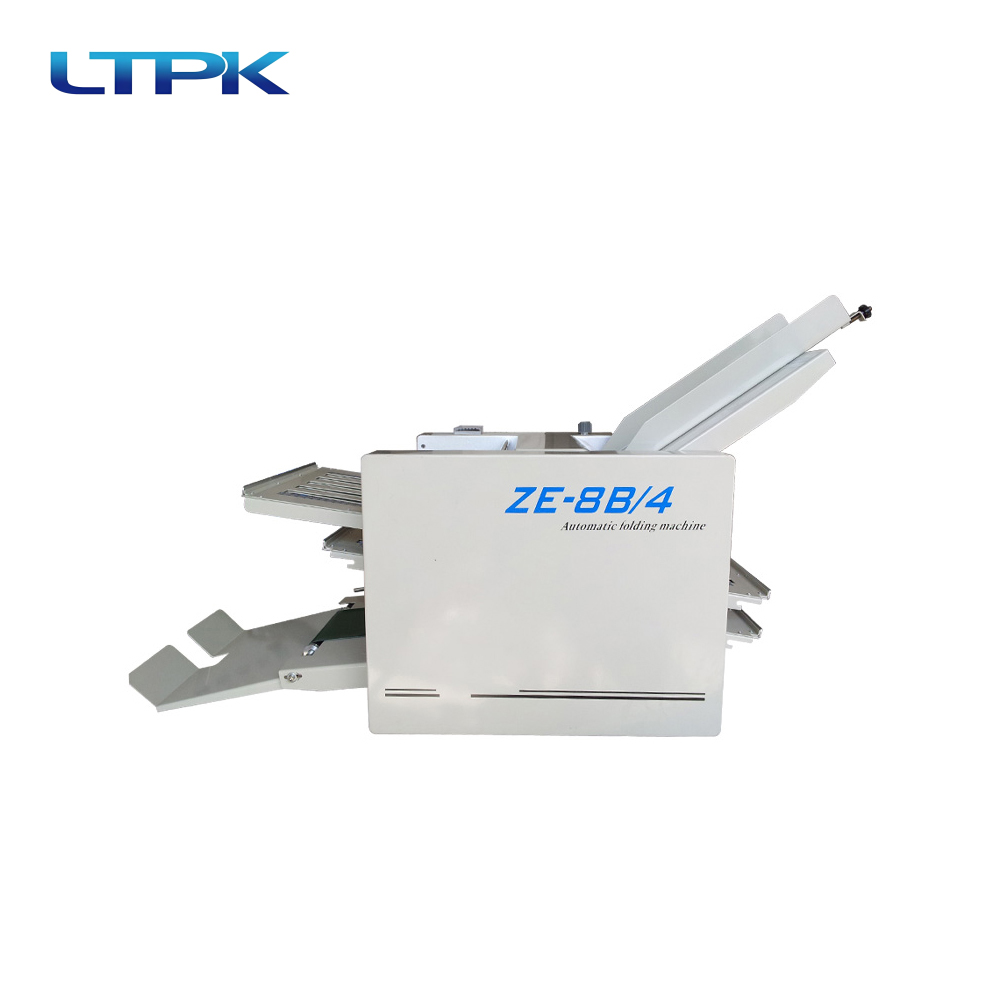

The ZE-8B/4 Paper Folding Machine is a robust, high-performance solution designed for precise and efficient folding of large-format documents, brochures, and promotional materials.
It operates on a dual-voltage AC 220/50 or 110/60V/Hz power supply with a 50W output, ensuring reliable performance across different regions. Equipped with 4 folding trays, it supports an extensive range of paper sizes from 50×70mm to 310×700mm and thicknesses from 40g to 125g, making it suitable for both small and large print jobs. With a maximum folding speed of 80m/min, it delivers fast throughput for high-volume production. Its sturdy construction features dimensions of 1080×530×580mm and a net weight of 48kg, combining durability with a footprint that fits seamlessly into print shops, copy centers, and marketing departments.
This user-friendly machine is ideal for producing consistent, professional-quality folds for large-format materials.
Technical Paramete
| Model | ZE-8B/2 | ZE-9B/2 | ZE-8B/4 | ZE-9B/4 |
| Voltage | AC 220/50 110/60V/Hz | |||
| Power | 50w | |||
| Folding Tray Number | 2 | 2 | 4 | 4 |
| Max.paper Size | 310x700mm | 210x400mm | 310x700mm | 210x700mm |
| Min.Paper Size | 50x70mm | |||
| Max.paper Thickness | 125g | |||
| Min.Paper Thickness | 40g | |||
| Max.Speed | 80m/min | |||
| Dimension | 1050x525x505mm | 1020x425x525mm | 1080x530x580mm | 1020x430x580mm |
| Net Weight | 35kg | 30kg | 48kg | 38kg |
