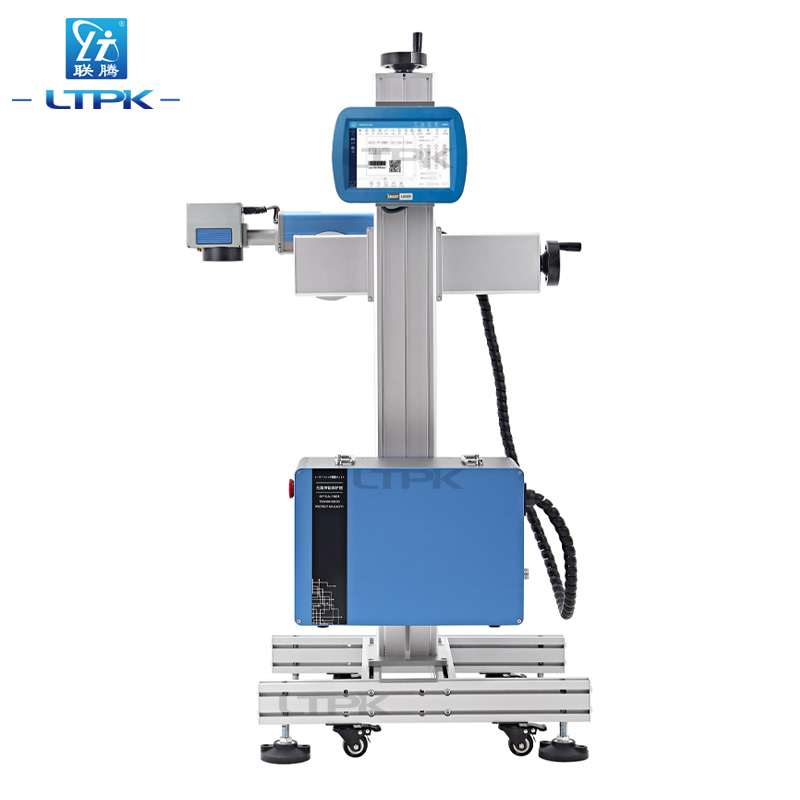

Fiber Laser Coding Machine
This high-performance fiber laser coding machine, powered by an adjustable 10-60W solid-state laser (10.6μm wavelength), enables fast, permanent, high-precision marking on metal, ABS, PVC, PE pipes and other materials. It features a dual infrared auto-focus system, a flying-specific lifting mobile platform (max scanning speed 8000mm/s), a 10.1-inch touchscreen with MARKING/WINXP software for easy operation and customization. With 0.02mm marking accuracy, 0.30mm minimum pattern size, air-cooled design and compatibility with 220VAC power, it operates reliably in 0°C-35°C (0-90% humidity) and is ideal for 24/7 continuous industrial use.
Introducing our high-performance Fiber Laser Coding Machine, engineered for fast, permanent, and high-precision marking across diverse materials. Powered by a solid-state laser with adjustable 10-60W power and a 10.6μm wavelength, it delivers crisp, legible codes on metal surfaces, ABS, PVC, PE pipes, and more.
Equipped with a dual infrared auto-focus system and a flying-specific lifting mobile platform, this unit ensures consistent alignment and stable operation even in high-speed production lines (max scanning speed up to 8000mm/s). The 10.1-inch touchscreen, paired with user-friendly MARKING/WINXP software (high-speed galvanometer type), allows for intuitive setup and flexible customization of text, logos, and variable data.
With a marking accuracy of 0.02mm and a minimum pattern size of 0.30mm, it meets strict industrial traceability and coding requirements. The air-cooled design, operating on standard 220VAC power, offers reliable performance in environments from 0°C to 35°C with 0-90% humidity, making it ideal for continuous, 24/7 production use.
Points:
Ultra-High Precision Coding - 0.02mm marking accuracy ensures sharp, clear codes for traceability.
Wide Material Compatibility - Works on metal, ABS, PVC, PE pipes and more, ideal for diverse industries.
High-Speed Production Ready - Max scanning speed up to 8000mm/s, perfect for continuous inline coding.
Stable & Low-Maintenance Operation - Air-cooled design with solid-state laser ensures long-term, trouble-free use.
User-Friendly Operation - 10.1-inch touchscreen + intuitive software for easy setup and customization.
| Model | Fiber Laser Coding Machine |
| Laser | Solid-state Laser |
| Screen Size | 10.1-inch Touch Screen |
| Focus System | Dual Infrared Auto-focus System |
| Special Bracket | Flying-specific Lifting Mobile Platform |
| Laser Wavelength | 10.6μm |
| Laser Power | 10-60W |
| Pulse Frequency | 1-10KHz |
| Max Scanning Speed | ≤8000mm/s |
| Marking Accuracy | 0.02mm |
| Minimum Pattern Size | 0.30mm |
| Cooling System | Air Cooling |
| Marking Software | MARKING/WINXP (High-speed Galvanometer Type) |
| Power Supply | 220VAC, 50Hz, 1.8KVA |
| Working Environment | Temperature 0℃-35℃, Humidity 0-90% |
| Application Scenarios | Suitable for flat coding on metal materials, ABS, PVC, PE pipes, etc. |
