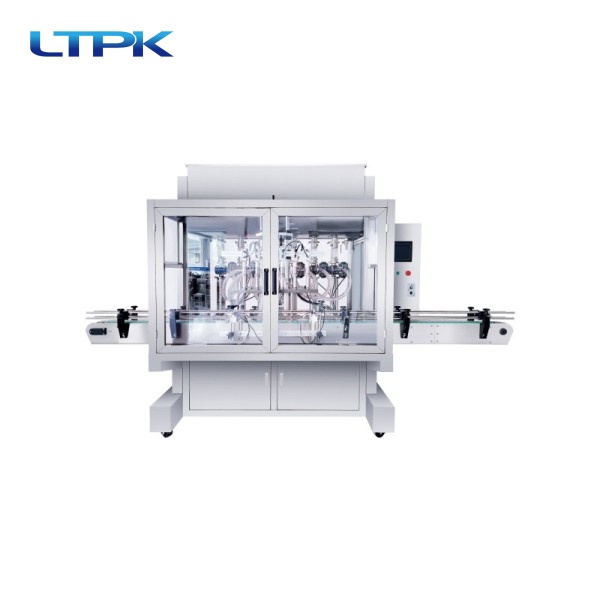

Linear 6-head servo filling machine
- Precise Servo Filling System：6 independent servo filling heads ensure ±1% filling tolerance, drastically reduce raw material waste for high-cost liquid like syrup, essential oil and sauce; multiple filling ranges from 5ml to 5000ml available for switching different products quickly
- Wide Speed & Customization Option：Adjustable production speed 5-60 bottles/min to match different output needs; filling head quantity can be customized into 2,4,6,8,10 heads as customer’s workshop space and production plan
- Global Universal Power & Stable Pneumatic Design：optional AC110V/220V 50/60HZ power input fits most countries’ industrial power; standard 0.4-0.6MPa air pressure requirement works with regular factory air compressor globally, easy for overseas installation
- Multi-industry Versatile Application：Suitable for cup/bottle liquid filling & sealing of beverage, dairy, honey, lotion, edible oil and chemical liquid, one machine covers various packaging specifications
- Low Maintenance & High Durability：Servo-driven structure features fewer vulnerable parts, convenient daily cleaning and parameter modification, lowering later operation & maintenance cost for factories
Performance and Features:
Our linear 6-head servo-driven filling & sealing machine is upgraded from rotary cup filler, engineered for automatic quantitative liquid filling and container sealing across food, beverage, cosmetic & chemical industries. Equipped with six independent servo filling heads, this filler supports multiple optional filling volumes from 5ml up to 5000ml with outstanding ±1% dosing precision. Running at adjustable production speed of 5~60 bottles per minute, it fits diverse batch production demands. It optional AC110V/220V 50/60HZ power supply and requires 0.4-0.6MPa stable compressed air, while filling head quantity can be customized as 2/4/6/8/10 heads per client’s factory layout. Servo control brings low wastage, easy parameter adjustment and long service life for your filling line.
Technical parameters:
| Model | Linear 6-head servo filling machine |
| Power | 1.5KW |
| Power supply | AC220/110V50/60HZ |
| Air pressure | 0.4-0.6Mpa |
| Speed | 5-60blts/min |
| Accuracy | ±1% |
| Filling range | 5-100ml/10-300ml/50-500ml/100-1000ml/500-3000mI/1000-5000ml |
| Number of filling heads | 2,4,6,8,10 （Customizable） |
