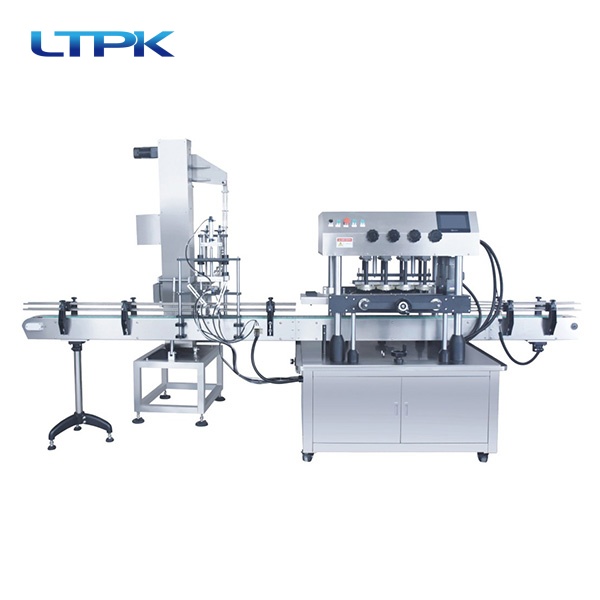

8 Rounds Online-Continuous Twist Capping Machine
- This machine has high degree of automation as it integrates auto arranging,puting up and screwing cap.
- Capping torauce can be set according to requirements.
- With a small number of parts replacing like mould, auto capping can be suitable for different sizes of bottles.
- There are inverted rotation and a pre-rotation function for putting up caps to ensure accurate capping and high capping pass rate.
- The shell,frame,main structure,etc.of the machine are mainly made from 304# stainless steel so it is with beautiful appearance.
- For this machine PLC with man-machine interface(touching screen)control was adopted,and for the main elecrical and pneumatic componets we choose domestic well-known brands to ensure stable performance.
Performance and Features:
This eight-wheel capping machine integrates automatic cap sorting, cap feeding and screw capping into one unit with outstanding automation performance. The capping torque is freely adjustable to match your sealing requirements precisely. Only minimal replacement of mold accessories is needed to accommodate bottles of different dimensions, bringing strong production versatility.
Equipped with cap reverse rotation and pre-rotation mechanisms, the equipment realizes precise cap placement and achieves a high qualified capping rate. The whole machine’s housing, rack and primary frameworks are constructed with 304 stainless steel, delivering a neat, hygienic and elegant outlook compliant with food & pharmaceutical production standards.
Controlled by PLC system matched with touch screen HMI, core electric and pneumatic parts adopt trusted domestic famous brands for long-term steady running.
Technical parameters:
| Speed | 20-100pcs/min |
| Cap's diameter | Φ15-Φ60mm |
| Bottle's diameter | Φ35-Φ140mm |
| Bottle's height | 38-250mm |
| Power | 1.5kw |
| Net weight | 2000x850x1800mm |
| Weight | 550kg |
