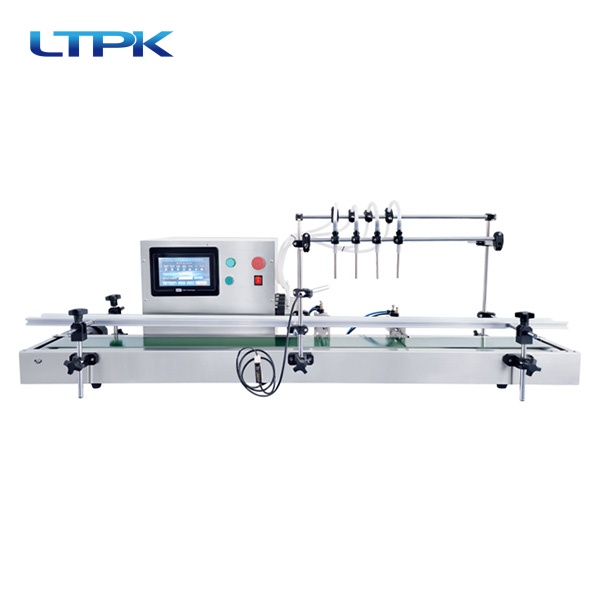

Automatic desktop liquid filling machine (simple)
- Flexible Customization: Filling heads from 2/4/6/8/10 optional; 6 interchangeable filling ranges (5~5000ml) to match different liquid packaging specifications.
- Precise Metering: ±1% filling accuracy, effectively avoid liquid overflow and raw material waste for beverage, essential oil, alcohol, daily chemical liquids.
- Global Wide Voltage: AC110V/220V 50/60HZ dual voltage design, fits most countries’ factory power supply; stable pneumatic drive with 0.4~0.6Mpa working air pressure.
- Adjustable Production Output: Speed adjustable 5–60 bottles per minute, suitable for small-batch trial filling and medium-volume daily production.
- Ultra Compact Lightweight: Only 40kg net weight, packing dimension 1550×600×450mm, desktop save-space design for lab, startup workshop and small beverage factory.
Performance and Features:
Our simple automatic desktop liquid filling machine is pneumatic piston filling equipment engineered for all kinds of free-flowing liquids, including drinking water, fruit juice, edible alcohol, essential oil, cosmetic toner, disinfectant and low-viscosity chemical solvent.
It supports customizable filling heads from 2 to 10 units and six optional filling ranges covering 5ml up to 5000ml, easily switching between small sample test and bulk production. With ±1% outstanding filling precision, it keeps consistent filling volume for every bottle and cuts unnecessary material loss.
Running speed ranges 5~60 bottles per minute under standard 0.4-0.6Mpa air pressure. Dual 110V/220V 50/60HZ power supply enables worldwide usage. Benefiting from lightweight 40kg body and compact desktop layout, this filler is the cost-effective bottling choice for new factories, cosmetic labs and mini beverage processing plants with limited workshop area
Technical parameters:
| Model | Automatic desktop liquid filling machine (simple) |
| Power | 500W |
| Power Supply | AC220/110V 50/60HZ |
| Pressure | 0.4-0.6Mpa |
| Speed | 5-60blts/min |
| Accuracy | ±1% |
| Filling range | 5-100ml / 10-300ml / 50-500ml / 100-1000mI / 500-3000ml / 1000-5000ml |
| Number of filling heads | 2 / 4 / 6 / 8 / 10 customize able |
| Packaging size | 1550x600x450mm |
| Machine weight | 40kg |
