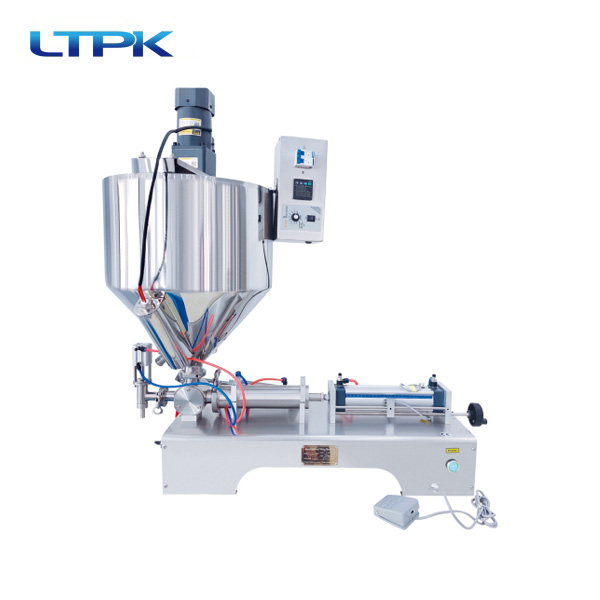

Single head paste heating, stirring and filling machine
- Integrated Heating & Stirring Hopper: Eliminates material separation and maintains consistent viscosity for smooth filling.
- High Precision Filling: ±1% accuracy ensures uniform product volume, reducing waste and improving product quality.
- Wide Filling Range: Optional 3-5000ml volume supports small-batch testing to large-scale production.
- Adjustable Production Speed: 4-30 bottles/min adjustable speed balances efficiency and flexibility for different products.
- Multi-Voltage Compatibility: AC110/220V 50/60Hz optional works with power systems worldwide.
- Compact & Energy-Saving: Small footprint (940×360×340mm) and low power consumption (200W) save workspace and operational costs.
Performance and Features:
Our Single Head Paste Heating, Stirring & Filling Machine is a compact, versatile solution designed for small to medium-scale production of viscous products like creams, sauces, and pastes. Built with a heating and stirring hopper, it ensures consistent texture and prevents material separation, while delivering precise filling with ±1% accuracy.With adjustable speed (4-30 bottles/min) and a wide filling range (3-5000ml optional), it adapts to diverse production needs. The machine supports multi-voltage optional (AC110/220V 50/60Hz) and operates efficiently at 200W, with low air consumption (≥0.008m³/min) and a small footprint (940×360×340mm) for easy integration into your workspace.
Technical parameters:
| Model | Single head paste heating, stirring and filling machine |
| Equipment power supply | AC220/110V50/60HZ |
| Power | 200W |
| Production speed | 4-30blts/min |
| Working pressure | 0.4-0.6mpa |
| Accuracy | ±1% |
| Capacity | 3-5000ml(Optional) |
| Gas consumption | ≥0.008m³/min |
| External dimensions | 940x360x340mm |
