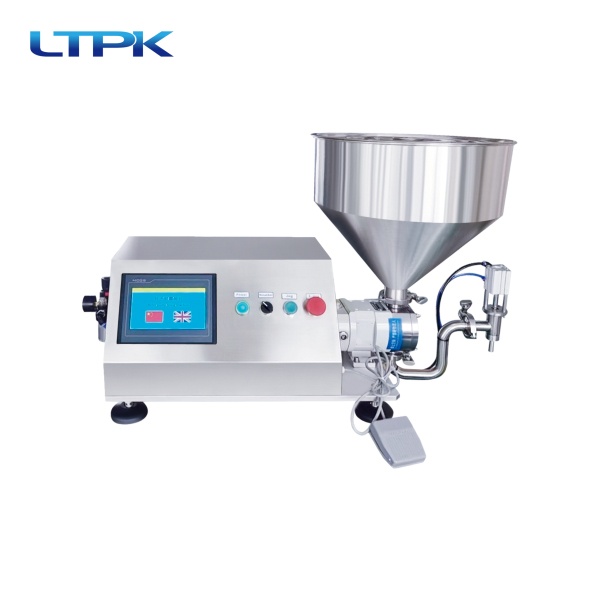

Rotary pump filling machine
- Wide filling range: 5-5000ml optional pump to meet diversified production demands
- High precision ±1% filling accuracy, reduce material loss effectively
- Adjustable speed 3-40bottle/min, flexible for small-batch & mass production
- Compact body (850×400×500mm), space-saving for limited workshop
- Low air consumption ≥0.008m³/min, save compressed air cost
- Pneumatic stable structure, easy operation & low maintenance cost
Performance and Features:
Our rotary pump filling machine adopts rotary pump quantitative filling principle, engineered for diverse viscous & semi-fluid products including paste, jam, edible oil, cosmetic cream and thick syrup.
Equipped with 220V 50/60Hz universal power supply, it runs at adjustable production speed from 3 to 40 bottles per minute. Filling volume ranges 5ml-5000ml with customizable pump configuration, featuring high filling precision within ±1% error to cut raw material waste.
Working under 0.6-0.8Mpa pneumatic pressure with low air consumption ≥0.008m³/min, the compact overall dimension (850×400×500mm) saves factory floor space greatly. Stable pneumatic drive ensures long service life and easy daily maintenance for food, cosmetic, pharmaceutical production lines.
Technical parameters:
| Model | Rotary pump filling machine |
| Equipment power supply | 220V50/60Hz |
| Production speed | 3-40blts/min |
| Working pressure | 0.6-0.8mpa |
| Accuracy | ±1% |
| Capacity | 5-5000ml（Optional） |
| Gas consumption | ≥0.008m³/min |
| External dimensions | 850x400x500mm |
