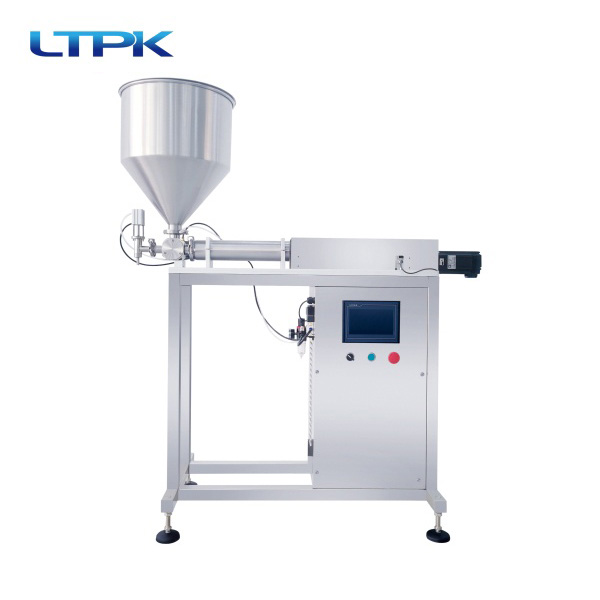

Floor standing stepper filling machine
- Versatile Filling Range: Handles 5ml to 1000ml liquids (customizable) for diverse product needs.
- High Precision & Efficiency: ±1% accuracy ensures consistent dosing; 10-50 bottles/min boosts production speed.
- Stable & Energy-Saving: 220V 300W power, low air consumption (≥0.008m³/min), works reliably with 0.4-0.6MPa pressure.
- Compact Floor-Standing Design: 1460×1650×620mm, 120kg, easy to install and fit in limited workshop space.
- Wide Industry Compatibility: Ideal for cosmetics, food, pharmaceuticals, and chemical liquid filling.
Performance and Features:
Our floor-standing stepper filling machine is a reliable, semi-automatic solution designed for precise filling of liquids from 5ml to 1000ml, ideal for small to medium production lines. Powered by 220V 50/60Hz with 300W, it operates stably with 0.4-0.6MPa air pressure, delivering 10-50 bottles per minute at ±1% accuracy. Built for low gas consumption (≥0.008m³/min), it’s compact (1460×1650×620mm, 120kg) for easy integration. Perfect for cosmetics, pharmaceuticals, food, and chemical industries.
Technical parameters:
| Model | Floor standing stepper filling machine |
| Equipment power supply | 220V50/60Hz 300W |
| Pressure | 0.4-0.6mpa |
| Production speed | 10-50blts/min |
| Accuracy | ±1% |
| Capacity | 5-1000mI（Optional） |
| Gas consumption | ≥0.008m³/min |
| Packaging size | 1460x1650x620mm |
| Packaging weight | 120Kg |
