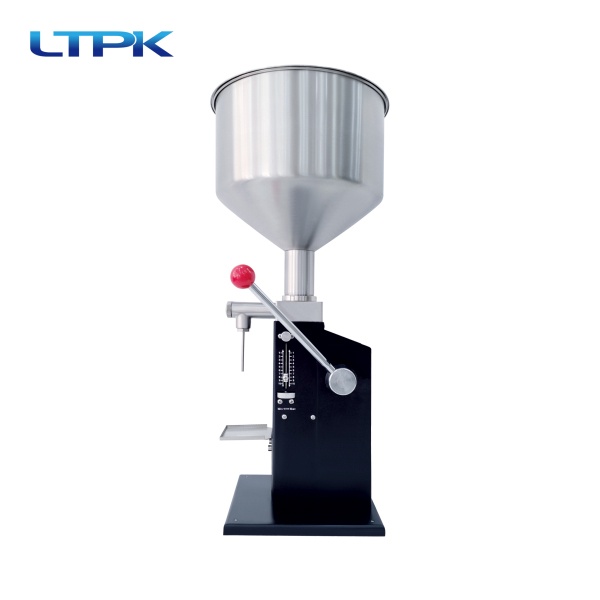

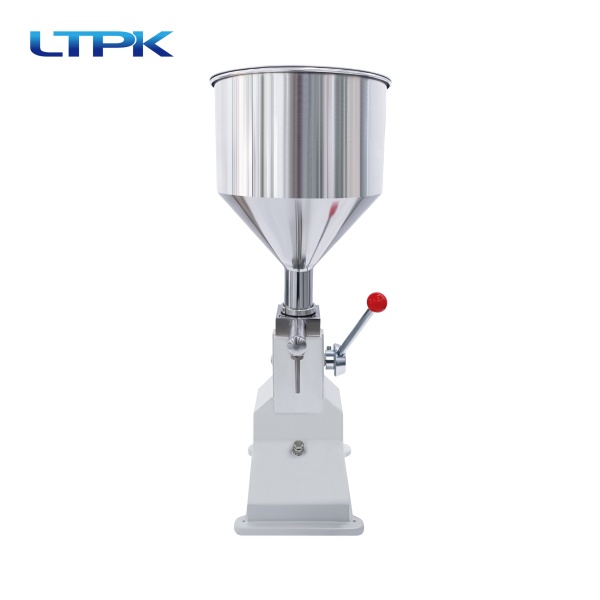

A03 Hand Pressure Filling Machine
- No Power Required: Operates by hand pressure, suitable for any workspace without electricity.
- Adjustable Filling Range: 5-50ml with ±1% accuracy, ideal for small-volume precision filling.
- Versatile Nozzles: 4mm/8mm interchangeable nozzles for different viscosities and bottle openings.3.
- High Efficiency: 20-30 bottles per minute with 10L large hopper for continuous operation.
- Compact & Portable: 270×270×700mm size and 12kg weight for easy installation and movement.
- Wide Compatibility: Suitable for liquids, pastes, semi-fluids in cosmetics, food, pharmaceutical industries.
Performance and Features:
This hand pressure liquid filling machine is a compact, no-power solution designed for small-scale production needs. It operates with simple hand pressure, requiring no electricity or compressed air, making it perfect for workshops, labs, and small businesses. With an adjustable filling range of 5-50ml and a filling accuracy of ±1%, it ensures consistent volume control for liquids, pastes, and semi-fluids like cosmetics, food sauces, pharmaceuticals, and essential oils.
The machine features two interchangeable nozzles (4mm/8mm) to suit different product viscosities and bottle sizes, paired with a 10L large-capacity hopper for continuous filling. At a speed of 20-30 bottles per minute, it balances efficiency and precision for low-volume runs. The compact design (270×270×700mm) and lightweight build (12kg) make it easy to install and move, while the stainless steel construction ensures easy cleaning and long-term durability.
Technical parameters:
| Working mode | Hand pressure |
| Filling speed | 20-30blts/min |
| Filling range | 5-50ml |
| Diameter of nozzle | 4mm/8mm |
| Filling accuracy | ±1% |
| Hopper capacity | 10L |
| Dimensions(LxWxH) | 270x270x700mm |
| Total weight | 12Kg |
