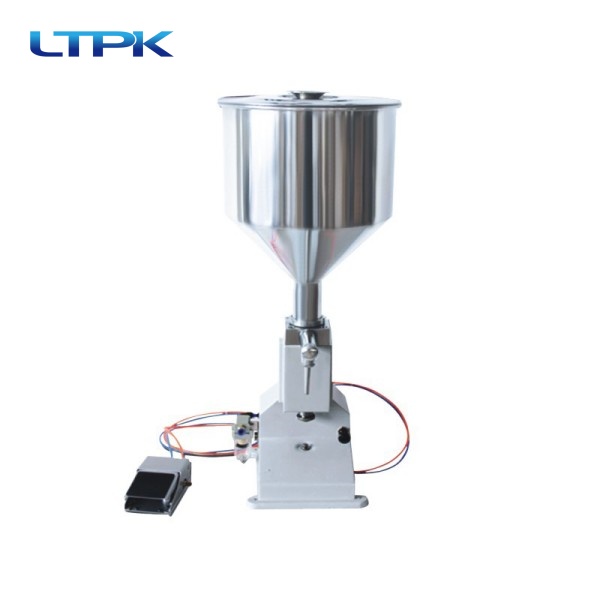

A02 Pneumatic Filling Machine
- Pneumatic, Labor-Saving OperationPowered by stable pneumatic pressure, no electricity required, safe and reliable for various working environments.
- Wide Filling Range & High AccuracyCovers 5-50ml with ±0.2-1ml accuracy, meeting small-volume filling needs for diverse liquids.
- Adjustable Speed & Dual Nozzle Options20-60 bottles per minute adjustable speed, with 4mm/8mm nozzles for different liquid viscosities.
- Compact & Durable Build270×270×700mm size, 15kg weight, easy to move and install; sturdy construction ensures long service life.
- Large Hopper Capacity10L hopper reduces frequent refills, improving production continuity.
- Versatile ApplicationIdeal for filling liquids like essential oils, serums, sauces, and chemical solutions.
Performance and Features:
This pneumatic liquid filling machine is a compact, semi-automatic solution for precise small-volume filling. Designed for low-to-medium production needs, it handles liquids from 5ml to 50ml with high accuracy, ideal for cosmetics, pharmaceuticals, food, and chemical industries. The dual nozzle options (4mm/8mm) cater to different liquid viscosities, while the adjustable speed (20-60 bottles per minute) balances efficiency and precision. With a 10L hopper, durable construction, and low-maintenance pneumatic operation, this machine is perfect for small businesses seeking reliable, cost-effective filling performance.
Technical parameters:
| Working mode | Pneumatic |
| Filling speed | 20-60blts/min |
| Filling range | 5-50ml |
| Diameter of nozzle | 4mm/8mm |
| Measurement accuracy | 0.2-1ml |
| Hopper capacity | 10L |
| Dimensions(LxWxH) | 270x270x700mm |
| Total weight | 15Kg |
| Working pressure | 0.4-0.6Mpa |
