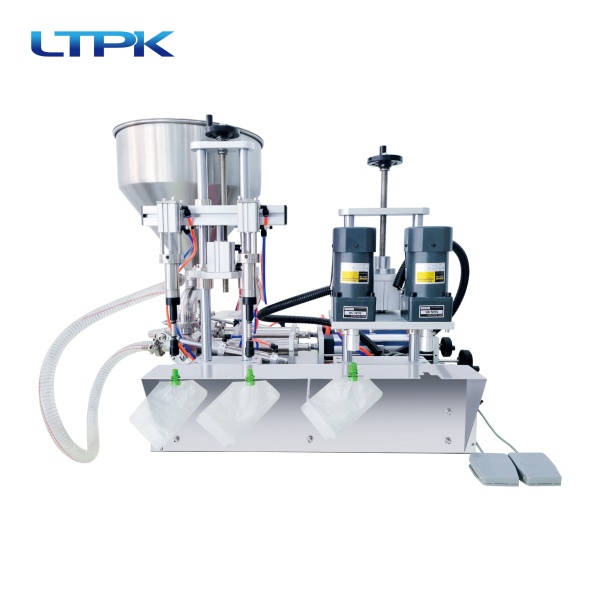

Self standing bag filling and capping machine
- Wide filling range：Supports 5–5000ml filling volume to meet diversified production demands
- Dual-head design：2 filling heads boost production efficiency for continuous packaging
- Dual-material compatibility：Works perfectly for both liquid and paste materials
- High filling accuracy：±1% precision reduces material waste effectively
- Strong adaptability：Adjustable lifting height for various spout pouch sizes
- Stable pneumatic drive：0.4–0.6Mpa air pressure ensures consistent running
- Compact structure：Two optional packaging dimensions for easy transportation
Performance and Features:
This double-head filling and capping machine is engineered for spout stand-up pouches, ideal for liquid and paste products across food, beverage, cosmetics and daily chemical industries.
It covers a wide filling volume from 5ml up to 5000ml with ±1% filling precision. The adjustable lifting height of filling and capping stations allows flexible matching of different pouch specifications. Adopting pneumatic working system with stable pressure of 0.4–0.6Mpa, the machine runs reliably with low failure rate.
Two filling heads greatly improve packaging output. We provide two machine sizes for 1000ml and 5000ml version to match your filling capacity. Compact overall layout saves workshop space and facilitates convenient shipment.
Technical parameters:
| Model | Self standing bag filling and capping machine |
| Filling volume | 5-5000mI |
| Pressure | 0.4-0.6mpa |
| Material type | Paste/Liquid |
| Number of filling heads | 2 |
| Power | 260W |
| Applicable bottle diameter | original>6mm,<16mm 5000ml(>16mm,<34mm) |
| Filling head, capping head spacing | 20cm |
| Filling Precision | ±1% |
| Filling lifting height | 1-15cm |
| Screw cap lifting height | 1-12cm |
| Packaging size | 1000ml double heads paste 1200x700x850mm 5000ml double heads paste 1300x800x850mm |
