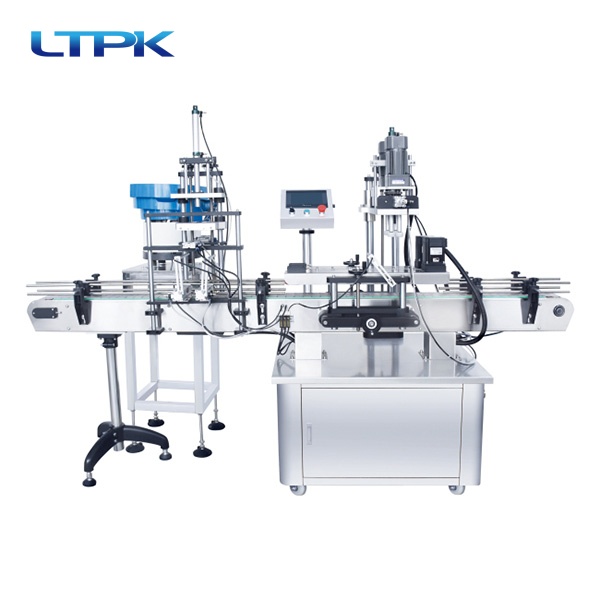

Automatic capping machine+Rubbing machine
- Working Speed：30-60 bottles per minute, efficient continuous mass production
- Wide Compatibility：Fit caps 20-50mm & bottles ≥250mm, suit most common cylindrical containers
- Stable Pneumatic Drive：0.4-0.6MPa air pressure provides steady capping force with uniform tightening effect
- Universal Power Supply：AC220V 50/60HZ global voltage, directly usable for most countries without transformer
- Solid Mechanical Structure：Integrated frame design, durable body with long service life & low maintenance cost
Performance and Features:
This integrated automatic capping & rubbing machine consists of an automatic capping host and a cap rubbing unit, designed for continuous bottle cap feeding, pressing and tightening operations for cylindrical containers. Applicable bottle height is no less than 250mm, matching cap diameters from 20mm to 50mm. Powered by 0.8kw with AC220V 50/60HZ universal voltage, the equipment runs at a production capacity of 30–60 bottles per minute. It requires 0.4–0.6MPa compressed air support for stable pneumatic driving. Compact structural layout: the capping machine measures 2000×1400×2000mm (280kg), while the rubbing machine adopts a 2500×1400×2000mm frame with a net weight of 350kg. Stable operation, high capping tightness, low failure rate, widely used in food, beverage, daily chemical and pharmaceutical filling production lines.
Technical parameters:
| Model | Automatic capping machine | Rubbing machine |
| Voltage | AC220V,50/60HZ | AC220V,50/60HZ |
| Bottle height | ≥250mm | ≥250mm |
| Cap diameter | 20-50mm | 20-50mm |
| Power | 0.8kw | 0.8kw |
| Production speed | 30-60 pieces/min | 30-60 pieces/min |
| Air pressure | 0.4-0.6MPA | 0.4-0.6MPA |
| Machine size | 2000(L)x1400(W)x2000(H)mm | 2500(L)x1400(W)x2000(H)mm |
| Weight | 280kg | 350kg |
