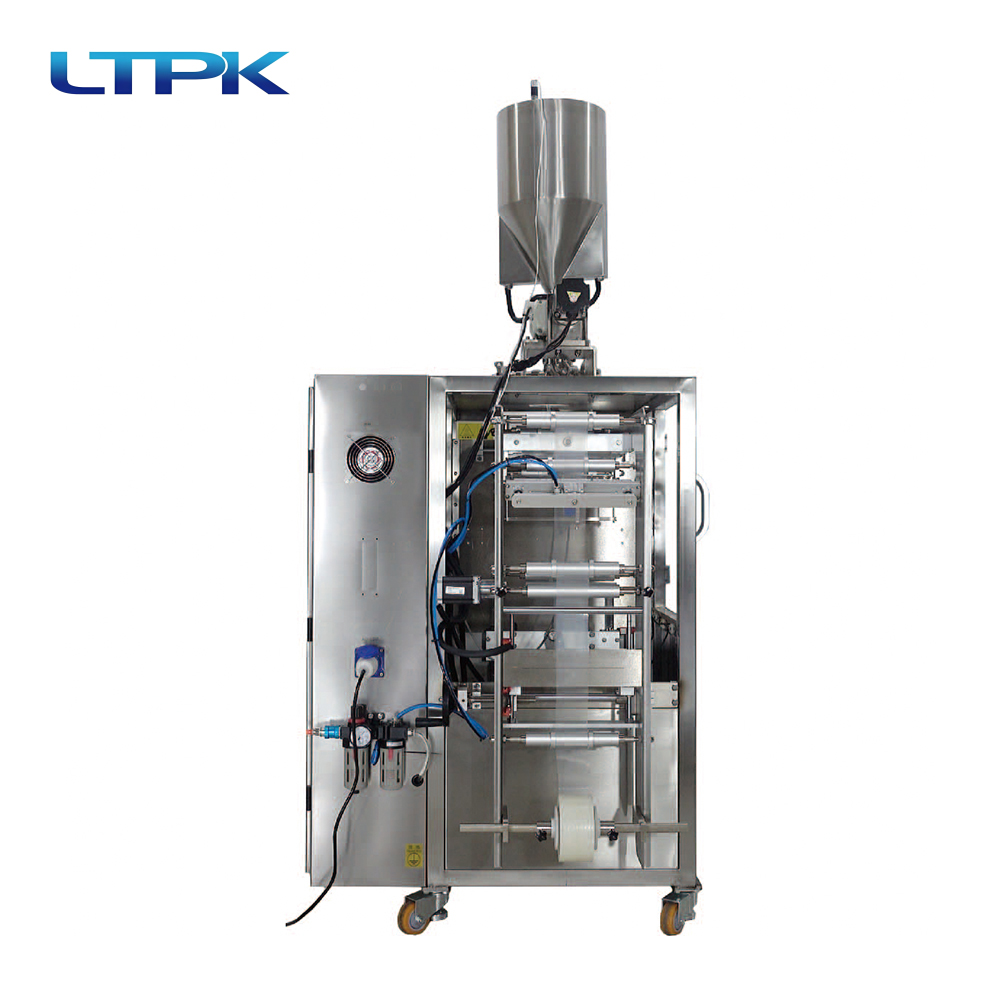

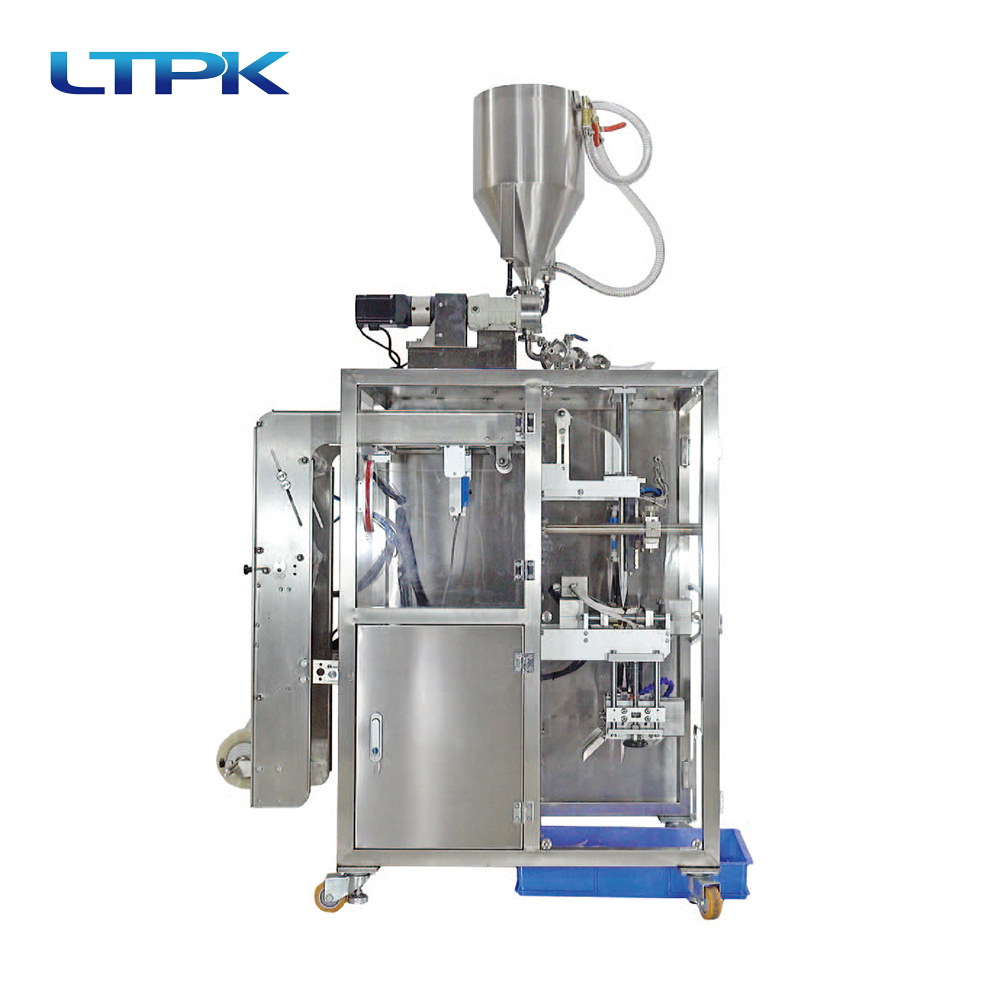

88 shaped bag packaging machine
This back-sealing special-shaped bag packaging machine is a high-efficiency solution for small-volume (1–20 ml) liquid/paste packaging, with a bag size of 30–180 mm (L) × 20–80 mm (W) and a packing speed of 20–35 bags/min. It operates on AC220V / 50–60Hz with a 3KW power rating, requires a 0.6Mpa gas source, and has a robust 720 kg frame with dimensions of 958 × 1300 × 2417 mm, ideal for food, cosmetics, and pharmaceutical industries.
This back-sealing special-shaped bag packaging machine is a high-efficiency solution for small-volume liquid/paste packaging, ideal for food, cosmetics, and pharmaceutical industries. With a measuring scope of 1–20 ml, it produces bags sized 30–180 mm (L) × 20–80 mm (W) at a speed of 20–35 bags per minute. Built for reliability, it features a robust 720 kg frame, dimensions of 958 × 1300 × 2417 mm, and operates on AC220V / 50–60Hz with a 3KW power rating, requiring a 0.6Mpa gas source. Its back-sealing design ensures consistent, leak-proof seals for premium product presentation.
Product Technical Parameters
| Measuring Scope | 1 - 20ml |
| Bag Size | Length (L):30 - 180mm, Width (W): 20 - 80mm |
| Packing speed | 20 - 35bags/min |
| Dimension (L*W*H) | 958 * 1300 * 2417mm |
| Weight | 720kg |
| Total Power | AC220V / 50 - 60HZ / 3KW |
| Gas source | 0.6Mpa |
